Valor Fitness CB-15 Plate-Loaded Lat Pulldown & Low Row Machine

Heavy-Duty 10-Gauge Structural Steel Frame, Smooth Dual-Pulley Cable System, 770lb Max Capacity, Adjustable Thigh Rollers, and Textured Low Row Footplates

Build a wide, powerful back, sculpt your latissimus dorsi, and strengthen your mid-to-lower traps with the heavy-duty, plate-loaded efficiency of the Valor Fitness CB-15 Lat Pulldown & Low Row Machine. Engineered to support massive workloads in home gyms, garage lifting setups, and light commercial studios, this dedicated machine delivers premium cable performance without the extreme cost or massive footprint of a selectorized commercial weight stack. By housing high-cable pull downs and low-cable seated rows inside one space-saving vertical tower, it serves as an incredibly versatile back-building anchor.

The foundation of the CB-15 is built using rugged 10-gauge structural steel tubing, protected by a scratch-resistant matte black electrostatic powder-coat finish. The weight carriage features dual plating sleeves designed to fit both standard ($1\text{"}$) and Olympic ($2\text{"}$) weight plates, gliding smoothly along twin solid steel guide rods. Utilizing high-tensile, nylon-coated aircraft steel cables and deep-groove pulleys, the machine balances a massive 770lb load capacity with an incredibly smooth, fluid stroke that keeps continuous mechanical tension on your upper-body pulling muscles.

Key Product Features & Core Engineering

• Dual-Action Back Station: Combines a high-pulley lat pulldown and a low-pulley seated row into a single space-saving vertical frame, letting you transition between exercises instantly.

• Heavy-Duty 10-Gauge Steel Frame: Fabricated using industrial-grade, thick-walled steel tubing to guarantee total frame stability and eliminate structural flexing under massive weight loads.

• Massive 770lb Weight Capacity: Built with a heavy-duty sliding weight carriage supported by a dual-pulley cable system, engineered to safely handle heavy, high-capacity training.

• Smooth Glide Guide Rods: The plate carriage glides seamlessly on solid steel guide shafts, delivering a frictionless cable feel that preserves momentum during your reps.

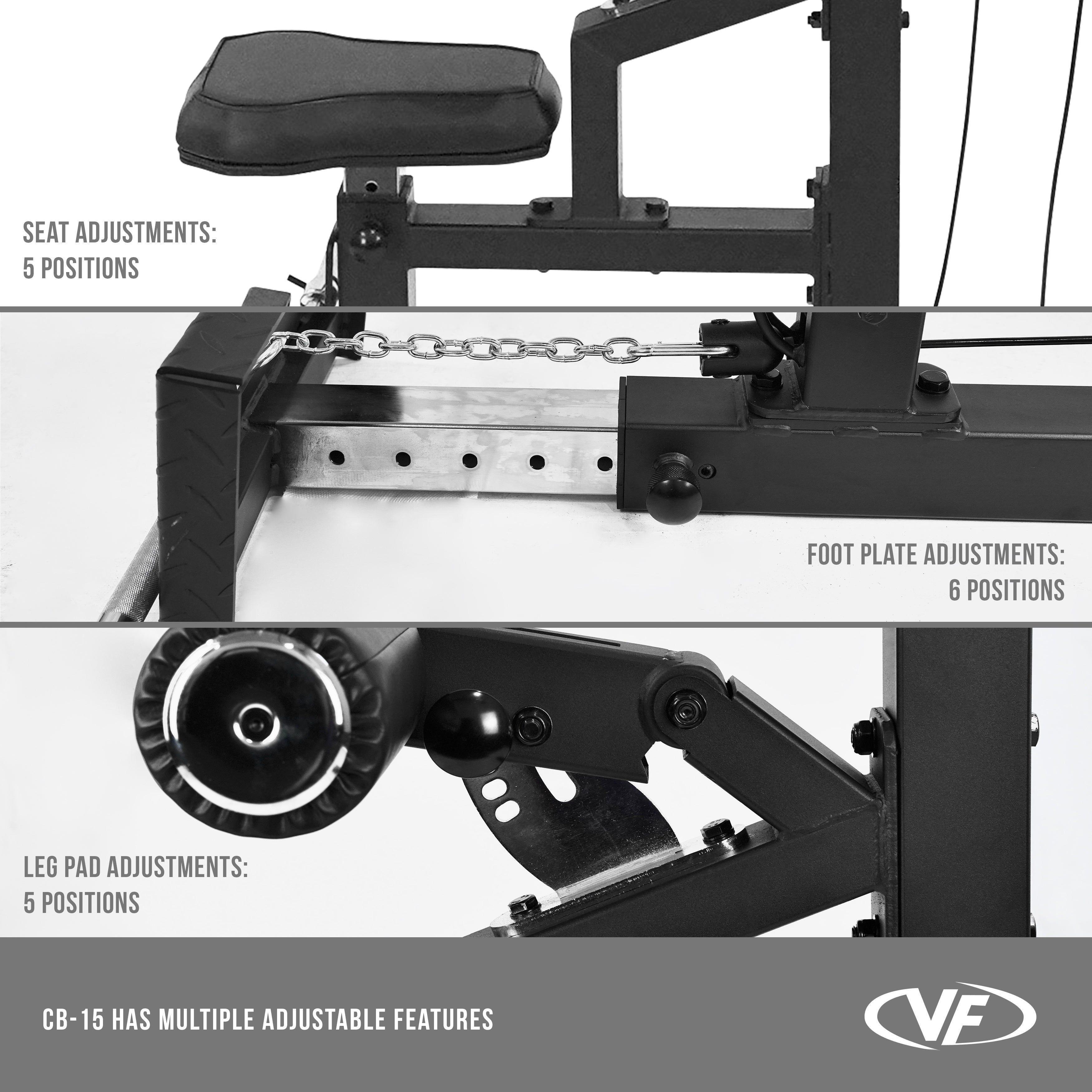

• Fully Adjustable Thigh Lock Rollers: Features thick, high-density foam thigh rollers that easily adjust vertically via a quick-release pop-pin to lock you securely in place.

• Textured Low Row Footplates: Outfitted with integrated, angled non-slip steel footplates to stabilize your lower body and maintain perfect spinal posture during heavy seated cable rows.

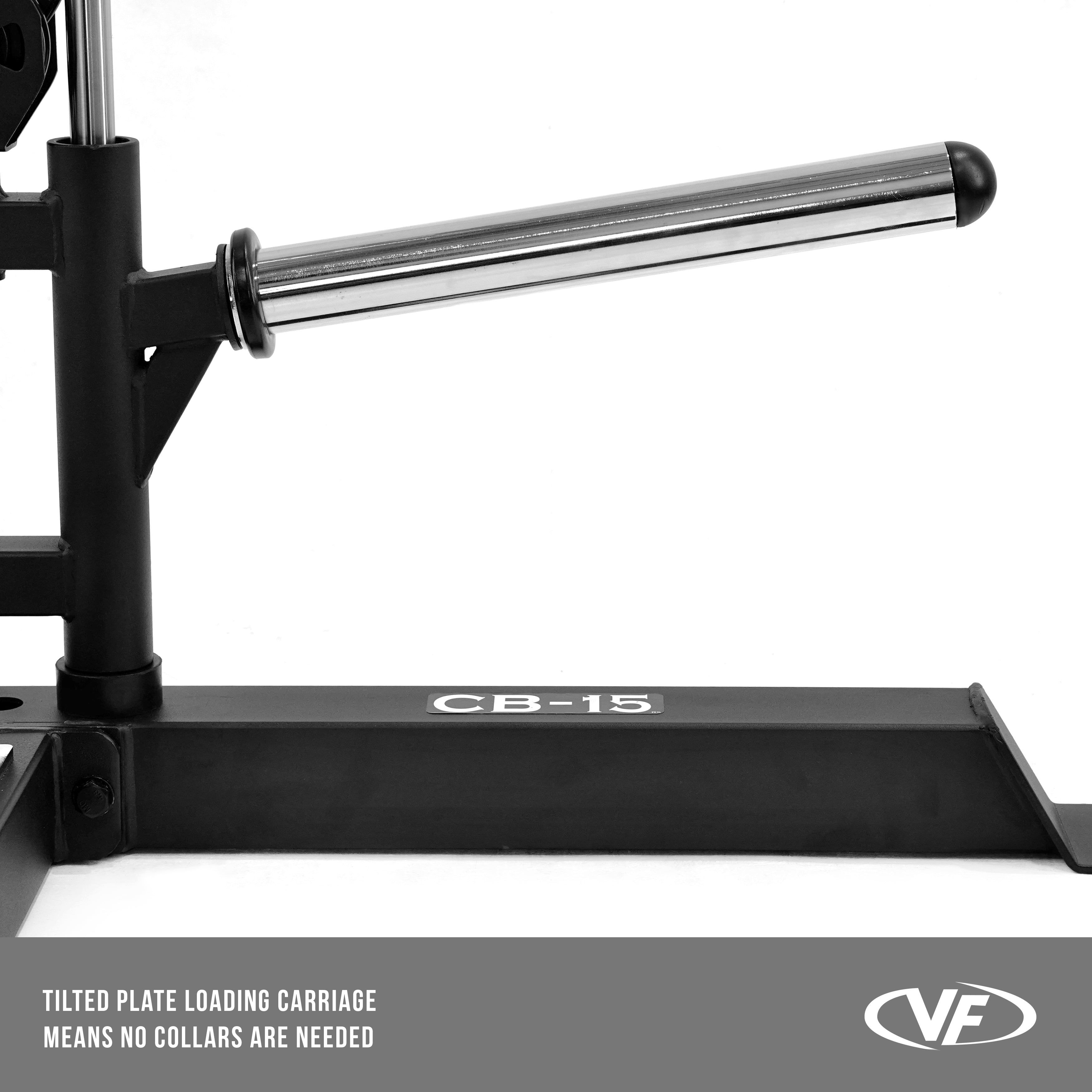

• Universal Standard & Olympic Compatibility: Includes dual plate-loading sleeves designed to hold standard 1-inch plates, complete with adapter sleeves to securely fit 2-inch Olympic plates.

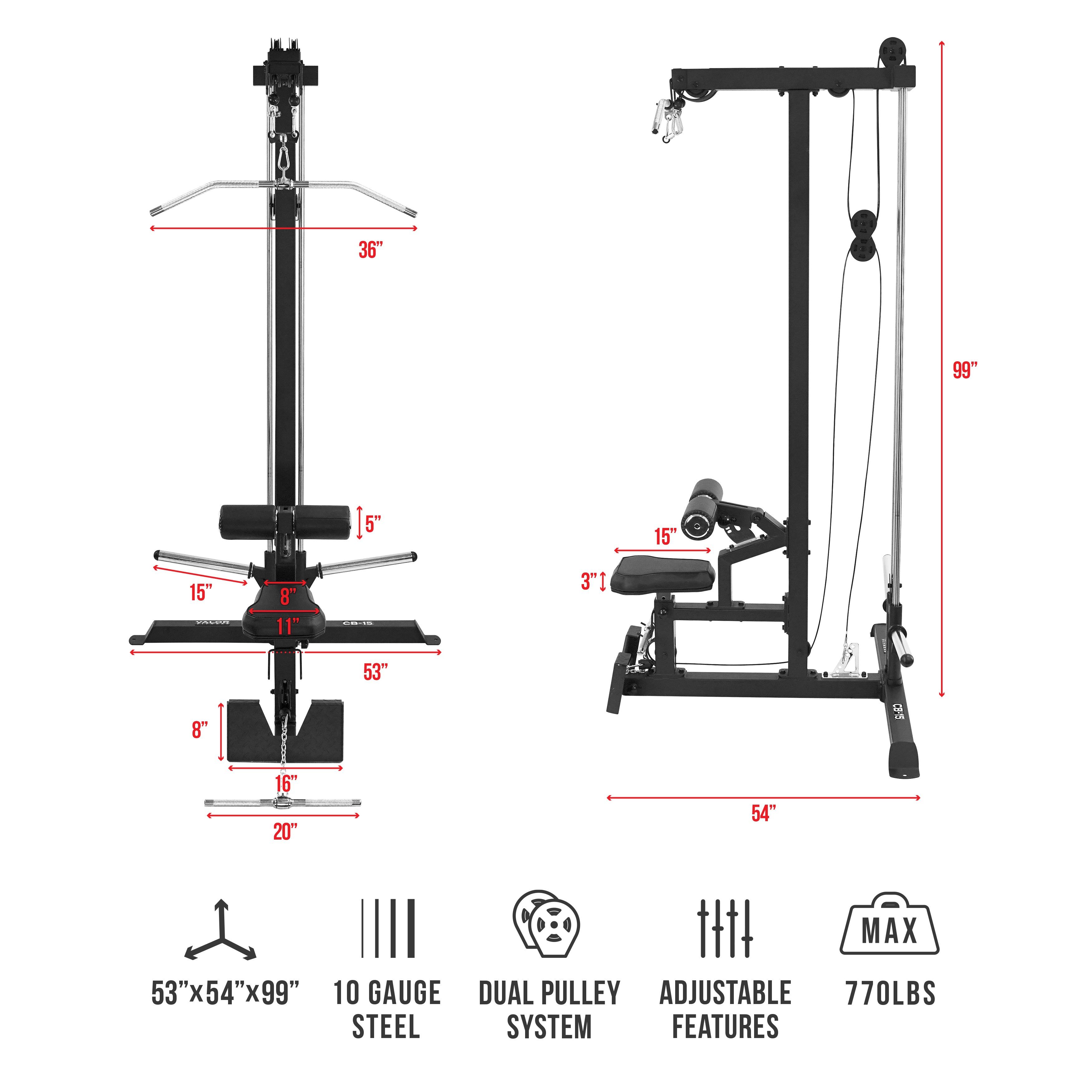

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Valor Fitness CB-15 Lat Pulldown & Low Row Tower Assembly

• 1 × Heavy-Duty Dual-Sleeve Slide Carriage Sled (With Olympic Adapter Sleeves)

• 1 × High-Density Utility Seat Bench & Adjustable Thigh Roller assembly

• 1 × 38-Inch Solid Steel Wide-Grip Lat Pulldown Bar

• 1 × 20-Inch Rotating Straight Low Row / Bicep Curl Bar

• 1 × Master Hardware Bolt Pack, Assembly Wrenches, and Installation Manual

Critical Field Installation & Operational Guidelines

• Level Base Positioning: Assemble the tower on a completely flat concrete surface. To protect your subfloor, absorb mechanical vibrations, and prevent the machine from sliding under heavy loads, we highly recommend placing a thick, high-density rubber gym mat directly under the unit.

• Guide Rod Lubrication Care: To keep the sliding weight carriage moving smoothly, clean the twin solid-steel guide rods monthly. Wipe away any dust or gym chalk with a dry microfiber cloth, then apply a thin layer of 100% dry silicone spray lubricant along the shafts. Avoid wet greases or WD-40, which can attract dirt and slow down the slide.

• Cable Tension Maintenance: Check the cable tracking periodically to make sure the aircraft steel cables stay centered in the pulley wheels. If the cables develop slight slack over time during heavy training sessions, adjust the tension brackets to keep the cable taut and ensure immediate resistance at the start of your rep.
